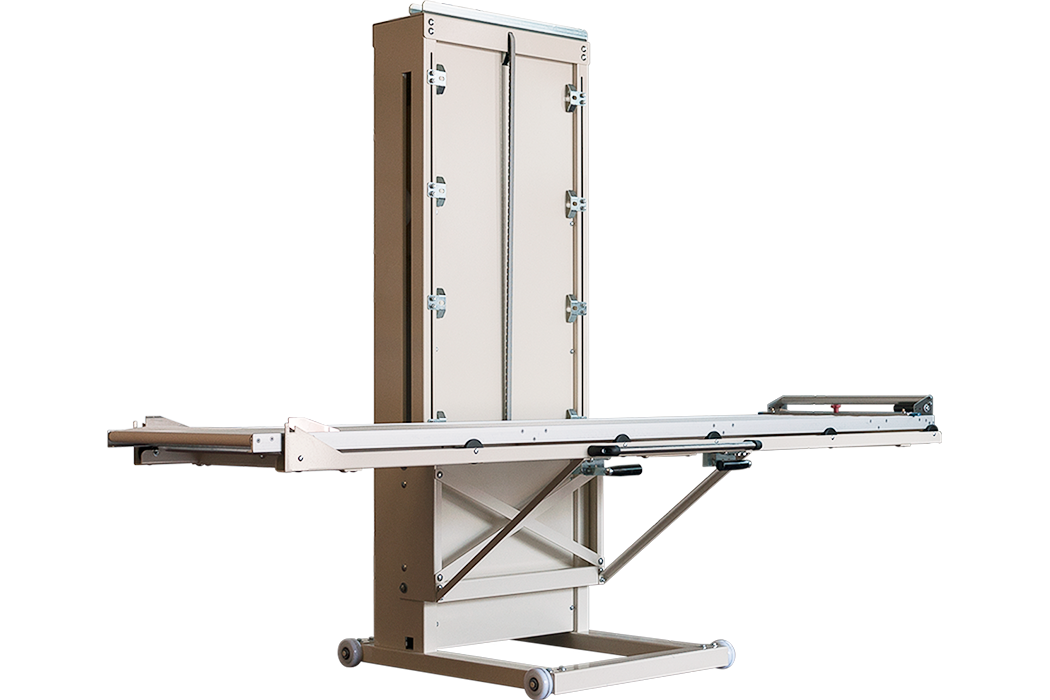

Loaders Lifter Mod. Eco
Size: 94x250 altezza 190 cm,
Dry weight: 100KG,
Usable size: da 61cm a 169cm.
Loaders Lifter Mod. Eco
Very versatile equipment with structure made in painted steel or in stainless steel, it is suitable for loaders lifting of width from 400 mm to 800mm.
When we designed this product we thought, above all, to the health of the baker. We use particular expedients to make the work as comfortable and secure as possible: in fact every lifter has a safety cable which, in case of breakage of the chain, avoids the falling of the level in order to protect the operator moreover the double handle greatly reduce the accidental movement of the plan due to impact. An easily adjustable counterweight has been designed to make the operator movement easier and less tiring as possible.
The loaders lifter can be mounted on the right or on the left of the oven and is equipped by an flush-guide of the oven. By request are also available some accessories like glass-lifter, higher handle, tip to turn out the bread and table stands.
Strong Points
- Painted or stainless steel;
- Locking security system in case of chain breakage;
- Double locking / unlocking handle of the plane;
- Adjustable counterweight to reduce the force at minimum;
- It is possible to install in every deck oven with assembly on the left or on the right;
- Flush-gude of the oven.

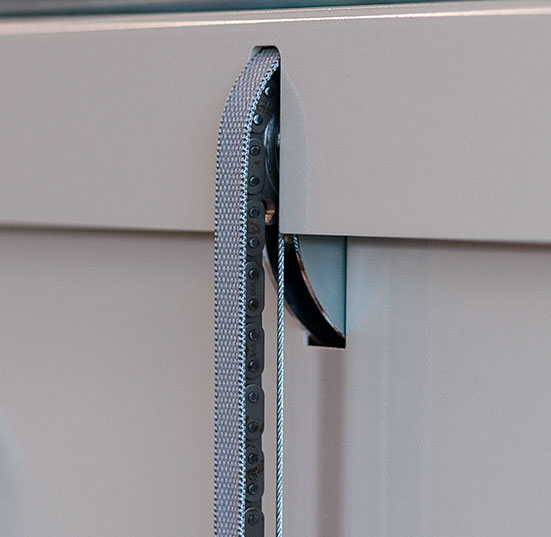

Safety
In parallel of the support chain there is a steel cable that, if in case of chain breakage, will block the level to prevent operator’s injuries, property damages and the operator can continue to use the lifter until the chain’s replacement.

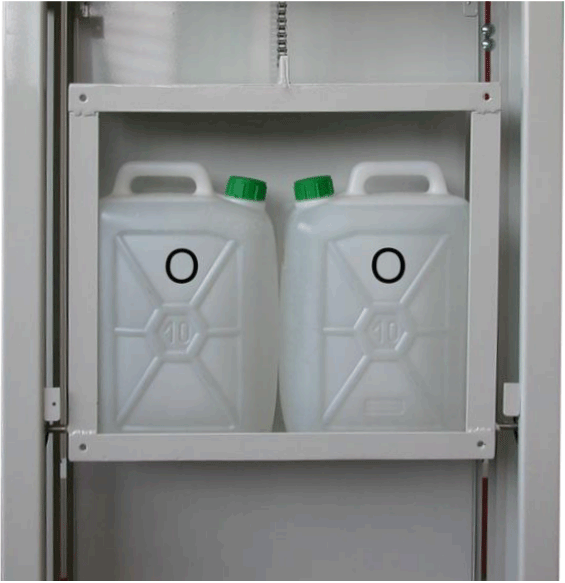

Counterweight
It is possible to have a perfect balance by adding water in the tanks placed within the counterweight box.

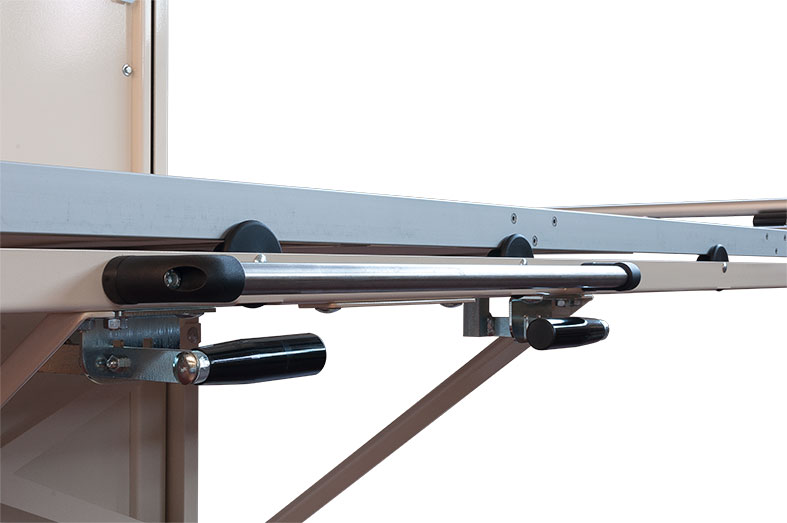

Handle
For the operator's safety, two handles have been placed in order to lock and unlock the plane. They permit to avoid operator’s injuries given that the movement of the machine must be made with both hands.

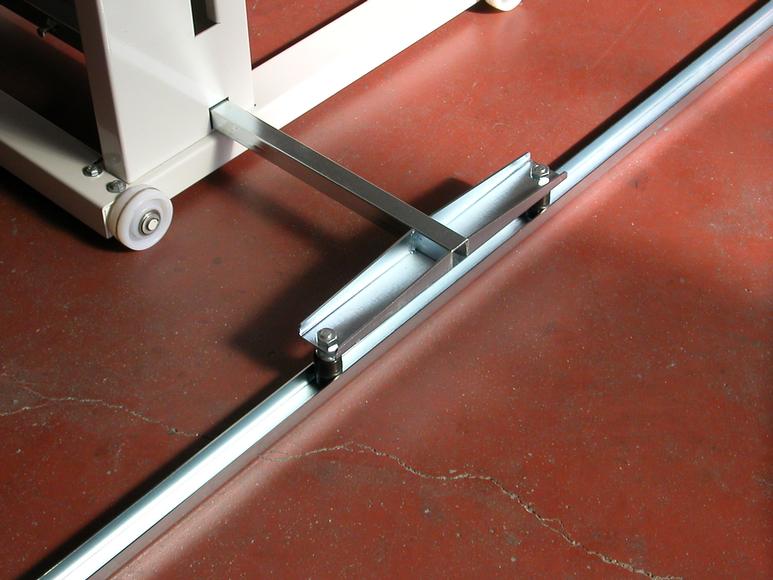

Flush-guide
Machine’s guide that has to be placed near the oven base to not to be in hindrance to the operator. It has been made with telescopic tube to adapt to every oven.
